Spring Winding Machine - Automatic

WAFIOS UFA 10

Technical details:

wire diameter - max.: 12 mm
wire diameter - min.: 2,0 mm
control for program: Process Controler
Total power requirement: 18,5 kW
Weight approx.: 10,5 t
dimension machine xH: 2,6 x 1,8 x 2,7 m
dimensions LxWxH: Schmiermittelanlage: 0,6 x 0,4 x 0,8 m
dimensions electric cabinet LxWxH: 0,5 x 1,2 x 2,1 m
dimensions of coil: 2,6 x 1,8 x 2,7 m
Bodpfou Ic Hnjx Alrelp

WRAIGHTING AND CUTTING MACHINE from the manufacturer Wafios-Hack
Also called spring coiling machine, for the production of right and left hand tension / compression springs.
Feed length 17400 mm
Spring Ø 120 mm
Output range:
Yield 1 - 70 pieces/min.
Spring Ø 25 - Ø 200 mm
Wire thicknesses round steel Ø 5.0 - 140 mm and square steel 5.0 - 12.5 mm
Feed speed - spring length max. 42,000 mm and wire feed F1= 40 m/min. + F2= 28 m/min. + F3=20 m/min.
currently mounted on the machine:
6 feed rollers for wire intake Ø 4 mm to produce the end product: tension spring wire Ø 4 mm, outer Ø 34 mm and length at 135 mm
Operation via control panel, Process Controler BRANKAMP

Equipment:
Lubricant system

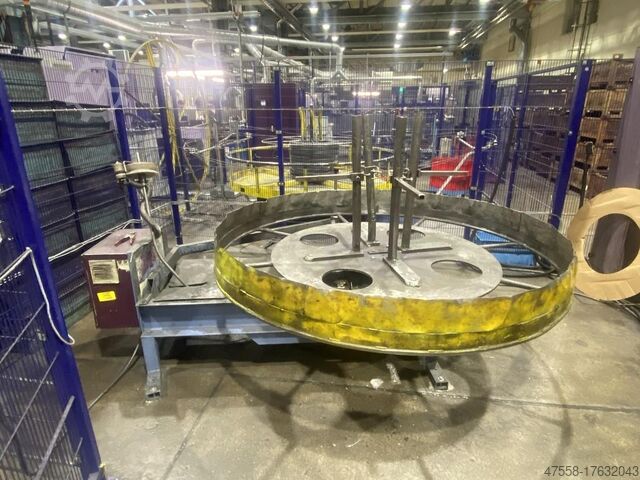

Wire reel reel
Switch cabinet cooler
reel
Optional accessories and/or spare parts see photo
