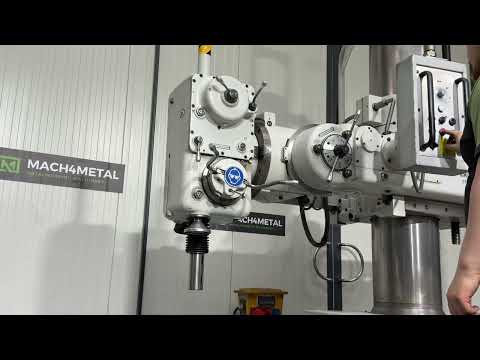

WEILER VOM 50 摇臂钻床

WEILER VOM50

Drilling ; Tapping in all directions
Can be moved in 7 axes
Fast preparation, accuracy and performence on heavy and bulky parts.
Field using Turbines, Generators, Compressors, Steel Construction, Boilers
Containers, Chemoical equipment, furnces of cement work and shipbuilding


Arm Length: 2070mm
Max. drill Ø cast: 65mm
Max. tap Ø: 48M
Ibsdpjyub Spsfx Abyoa
Stroke pinole: 350mm
Max. distance spindle - table:1550mm
Min. distance spindle - table:305mm
Speeds / ranges: 900Rpm
Spindle Taper: 5ISO/Bt/Mk
Column sleeve: 400mm
Power: 4kW
Max. drill Ø steel: 50mm
Length: 3500mm
Width: 1325mm
Height: 3400mm
Weight: 6570kg
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
