TRIMILL VU 2313
TRIMILL VU 2313

Name: TRIMILL VU 2313
Brand: TRIMILL
Availability: InStock

出厂年份

2010

状况

二手

位置

捷克共和国

显示地图

机器数据

机器名称:: TRIMILL VU 2313

制造商:: TRIMILL

型号:: VU 2313

出厂年份:: 2010

状况:: 可投入使用（二手）

运行小时数:: 68,648 h

价格和位置

位置:: , 捷克共和国

拨打

技术细节

X轴行程:: 2,300 毫米

Y轴行程:: 1,300 毫米

Z轴移动距离:: 1,000 毫米

桌面长度:: 1,800 毫米

工作台宽度:: 1,800 毫米

主轴速度（最大）:: 10,000 转/分

总重量:: 36,000 千克

工具重量:: 12,000 g

控制器制造商:: HEIDENHAIN

控制器型号:: iTNC530

刀库刀位数量:: 10

轴数:: 5

优惠详情

广告编号:: A21571128

参考编号:: CZ-MIL-TRI-2010-00001

更新:: 最近更新时间为 23.03.2026

描述

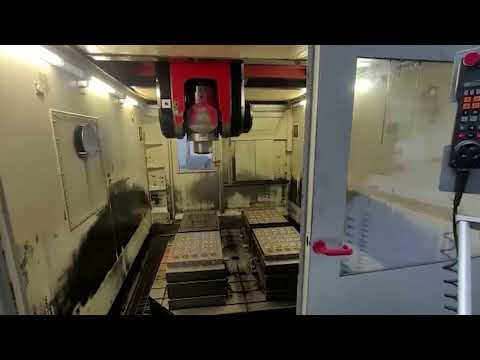

This Trimill VU 2313 Vertical Machining center was manufactured in the year 2010 in the Czech Republic and has 68648 hours, of which 40637 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 5 axis. The machine has a spindle speed of 10000 rpm, is in good condition, and is well maintained.
Kjdpfx Afoywlv Es Rsww

Machine Benefits

Qualitative Machine Benefits

• Good condition!
Technical Machine Benefits

• Spindle motor power/torque 25 kw / 195 nm
• B-axis (head) -2°/+92°
• C-axis table n x 360°
• Working feedrates x, y, z 30. 000 mm/min
• Rapid feedrates x, y, z 3 m/sec²
• Through spindle coolantMachine options: Connection station for high-frequency finishing spindle IMT ● HEIDENHAIN probe for workpiece positioning and measurement, infrared transmission ● BLUM probe - for tool measurement, laser - non-contact ● Tool cooling with liquid through the center of the spindle + external nozzles ● Lift Off - prevents the Z axis from sinking and damage to the part in the event of a power failure

Technical Specification
Taper Size HSK 100
