Okuma LB15 CNC-Drehmaschine / CNC Lathe

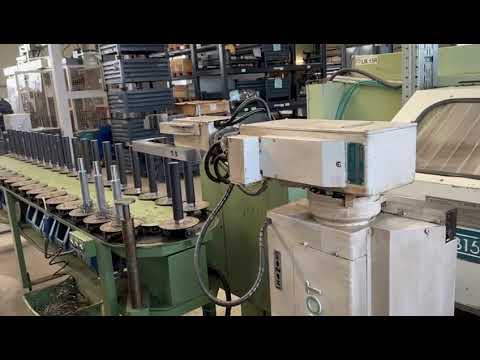

For sale is a robust and reliable Okuma CNC lathe, model LB15, with an integrated Okuma robot and automatic material feed.
The machine is ideally suited for automated series production and impresses with its high reliability and stable design.

The machine is in working condition and can be inspected under power by arrangement.

Technical data:

* CNC control: OSP 5000L-G CNC system (German)
* Data transmission: RS232
* Tool turret: 12 positions
* Spindle speed: 70–3800 rpm
* Spindle power: 11 kW (30 min) / 7.5 kW continuous operation
* Spindle bore: Ø 75 mm
* X-axis travel: 400 mm
* Z-axis travel: 500 mm
* Feed rate XZ: 12,000 mm/min
* Power supply: 3 × 400 V
* Rated machine power: 21 kVA
* Maximum load current: 36 A
* Machine dimensions:
approx. 2.9 m length
approx. 3.9 m with chip conveyor
approx. 1.8 m width
approx. 1.72 m height
* Machine weight: approx. 4,500 kg

Equipment:

* Integrated Okuma robot
* Automatic part feeding
* Ideal for series and automated turned parts
* Stable and durable design

Particularly interesting for:

* Series production
* Unmanned production
* Automated turned parts
* Production expansion or export

Loading and transport can be arranged.
Kdjdpfx Ajy Tp D Ssifsl

Price: Negotiable plus VAT.
Location: Germany

If interested, please contact us.

All information is non-binding, subject to prior sale.
Machines/machine parts are sold without warranty claims and remain our property until full payment.
