喷漆房 EZ系列型号 5x3.5

Kabina lakiernicza model serii EZ 5x3,5

Automotive Spray Booth

The automotive spray booth is a fundamental device in paint repair technology. It enables painting operations to be carried out in safe and comfortable conditions while minimizing the negative impact on the surrounding environment and the workspace.

Specifications:

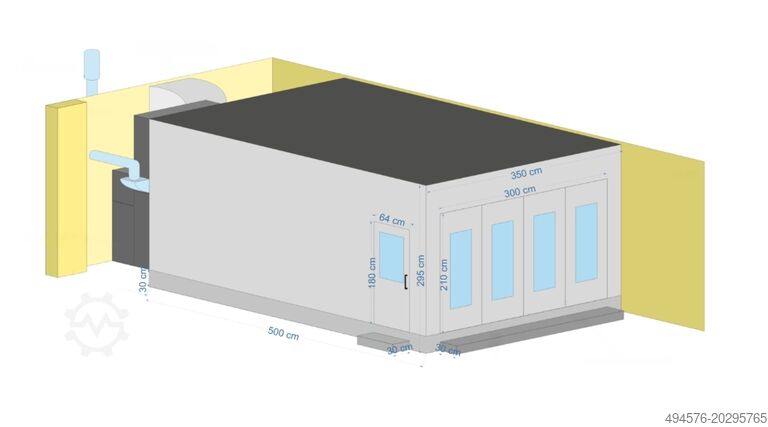

- External dimensions: 5000 (+ air handling unit 1350 × 2900 mm) × 3500 × 2950 mm
- Entrance door: 3000 × 2600 mm (three-wing design)
- Service door: 700 × 2000 mm
- Structure: made of steel sheets
- Heat exchanger: standard steel
- Panels: steel panels with mineral wool insulation in the walls

Cabin Wall Structure:
- Thickness: 50 mm
- Insulation: EPS polystyrene
- Color: white

Cabin Base:
- Cabin mounted directly on floor/concrete surface

Double Ceiling:
- External ceiling paneling
- Full-surface plenum chamber for air supply

Air Exchange System:
- Supply system:
- Jet turbine 4 kW – 2 units
- Airflow capacity: 26,000 m³/h
- Airflow system:
- Jet turbine 5.5 kW – 1 unit
Dedpfx Amoxnpczs Dsku
- Airflow capacity: 18,000 m³/h

Lighting:
- 8 side-mounted lamps
- Ceiling lighting: 24 LED tubes

Air Heating System:
- Single-stage oil burner Riello model 40 G20
- Burner control: manual
- Heating time: 8–15 minutes

Filtration System:
- Double-layer filtration structure
- High-capacity air purification system with filtration efficiency up to 99%
