立式钻床 GB 35 HSV

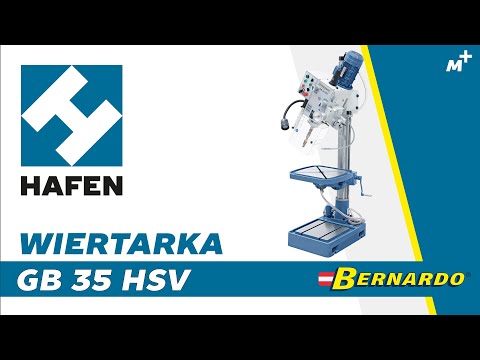

Bernardo GB 35 HSV

The GB 35 HSV bench drill is a professional machine designed for drilling in metal, wood, and plastics. It features a high spindle speed (75–3200 rpm) and comprehensive equipment to ensure precision and work efficiency. Motor power: 1500 W, automatic spindle feed, tilting drill table, cooling system, and LED work light.

Standard equipment includes automatic spindle feed
Robust base plate for machining large workpieces
2-range motor with 12 speeds up to 3200 rpm
Supplied with a 3–16 mm / B16 quick-release chuck
Large drilling table with T-slots (14 mm)
Simple and quick speed change via lever operation
High precision due to ground gear wheels in the transmission
Feed operation switched via clutch
Reverse function enabling tapping operations
Drill head tiltable 180° and rotatable 360°
Cooling system and LED lighting included in delivery

Technical specifications
Maximum drilling capacity: 32 mm
Drilling capacity in cast: n/a mm
Maximum tapping capacity: M20
Drill chuck: 1–16 mm / B16
Spindle taper: MK 4
Spindle speed min.: 75 rpm
Spindle speed max.: 3200 rpm
Speed change – number of steps / stepless: 12
Transmission type: Gear drive
Automatic spindle feed range: 0.10 / 0.18 / 0.26 mm/rev
Table tilting range: -45° to +45°
Drill head swing: 180° & 360°
Max. spindle-to-column distance: 295 mm
Max. spindle-to-table distance: 775 mm
Max. spindle-to-base distance: 1185 mm
Quill stroke: 125 mm
Column diameter: 115 mm
Table size (width): 500 mm
Table size (depth): 455 mm
Base working surface: 375 x 365 mm
T-slots (number, size, spacing): 14 mm
Motor power: 1.5 / 2.2 kW
Dujdpfx Aeytft Ijf Rjp
Continuous duty motor power S1 100%: 1.1 / 1.5 kW
Voltage: 400 V
Dimensions (width): 630 mm
Dimensions (depth): 700 mm
Dimensions (height): 2050 mm
Weight approx.: 340 kg

Scope of delivery
Quick-release chuck 1–16 mm / B16
Drill chuck arbor MK 4 / B16
Reducing sleeve MK 4 / 3
Guard
Service tools
Digital depth display
Cooling system
LED lighting
