Bernardo EBS 128 CL

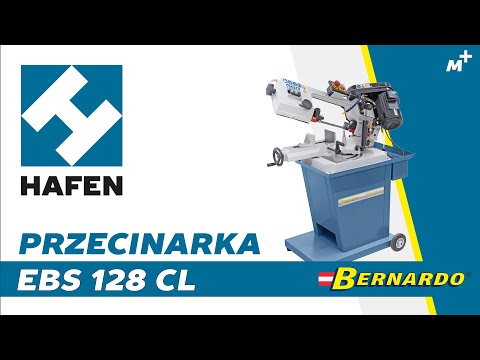

Simple, ergonomic, and economical metal band saw EBS 128 CL by BERNARDO. Angle cutting is possible from -60° to +45°, adjustable via the saw arm. Cutting capacity at 90° up to 125 mm (flat piece 150x100 mm). The main advantage of this saw, besides setting the cutting angle with the saw arm instead of repositioning the material, is the integrated cooling system as standard. This makes the EBS 128 CL an ideal choice for semi-professional craftsmen – combining performance, ergonomics, and ease of use.

Ibedpfoyr Nq Ujx An Nec
Key features:
• Mitre cuts possible within the range of (+45° to -60°)
• Stepless adjustment of the saw arm with a hydraulic cylinder
• Automatic end-of-cut shut-off – limit switch
• Robust, torsion-resistant saw arm
• Three cutting speeds adjustable by V-belt drive
• Sturdy machine frame guarantees precise, quiet, and vibration-free operation
• Supplied as standard with quick-action vice and workpiece stop
• Standard integrated coolant system
• Equipped to the latest safety standards with a separate emergency stop button (CE compliant)

Technical Specifications:
Cutting capacity round 90° 125 mm
Cutting capacity flat 90° 100 x 150 mm
Cutting capacity round 45° R 95 mm
Cutting capacity flat 45° R 95 x 76 mm
Cutting capacity round 60° 50 mm
Cutting capacity flat 60° 50 x 56 mm
Working height 740 mm
Band saw blade dimensions 1638 x 13 x 0.65 mm
Blade width 13 mm
Cutting speed 23 / 35 / 55 m/min
Motor power 0.75 kW
Continuous rating S1 100% 0.55 kW
Voltage 400 V
Dimensions (W x D x H) 980 x 550 x 1100 mm
Weight approx. 85 kg

Scope of Delivery:
• Band saw
• Quick-action vice
• Workpiece stop
• Automatic end switch
• Mobile machine base
• Hydraulic cylinder
• Cooling system
• Separate emergency stop button (CE compliant)
