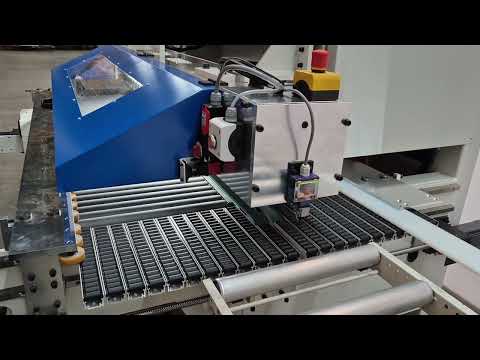

CNC Panel Saw Wehrmann WT-38/1040
New machine
For the conventional cutting of workpieces made of wood/wood-based materials with laminate (CLP, HLP), paper, foil or veneer

Panel dimensions + data (finished panel):
Length: from 140 mm
Width: min. (finished dimension) 38+38 mm
Width: max. (finished dimension) 520+520 mm (asymmetrical cutting is possible)
Thickness: 8 mm - 40 mm
Weight: approx. max. 30 kg
Workpiece shape: rectangular

Basic structure:
- User-friendly combination machine with adjustable zero line
- All drives and adjustments are servo-controlled
- The machining motors are frequency-controlled.
- Stable steel welded construction
- Workpiece transport is carried out by means of a transport belt and height-adjustable top pressure.

Base machine:
- Sound-absorbing/protective hood with safety interlock
- The required connection nozzles for an external extraction system with an air velocity of min. 28 m/sec. (underpressure 2480PA)
- A compressed air connection incl. maintenance unit.
- Integrated control cabinet with cooling unit for operating the machine at an ambient temperature of 10 - 45 degrees Celsius
- PC control Beckhoff
- Safety and protection devices according to CE guidelines
- CE marking

Feed rate v= 5 - 40 m/min servo-controlled drive
Electronic height adjustment of 5 - 45mm adjustable via Beckhoff servo axis
Stop ruler made of Teflon on the right side of the machine adjustable via Beckhoff servo axis
Infeed ruler on the left with pneumatically sprung unit adjustable via Beckhoff servo axes

Machine equipment:
Unit 1: Slitting saw, frequency-controlled
Milling stand with column guide and connecting plate
Motor Perske 4.4 KW 50 Hz 400 Volt 4500 RPM.
Tool holder D = 35 keyway
External + internal thread right / left, controllable via servo drive, operating in the same direction, not swiveling
with height adjustment via Beckhoff servo axis
Lateral adjustment with mechanical digital display
Saw blade max. 350 mm
without tools
Flow-optimized extraction hoods

Unit 2: Saw motor, frequency-controlled
Milling stand with column guide and connecting plate
Saw motor not controllable, operating in the opposite direction
Motor Perske 6 KW 50 Hz 400 Volt 5000 RPM.
Tool holder D = 35 wedge shaft with external + internal thread right / left
Saw blade max. D400 mm
without tools
with manually adjustable splitting wedge
with height adjustment via Beckhoff servo axis
Lateral adjustment with mechanical digital display
Flow-optimized extraction hoods

Beckhoff control technology
- PC-based control system with integrated PLC and electronic path control
- Virtually unlimited program memory
- Operation via keyboard / mouse / touch
- Reporting system for operator and error messages
- MDE Basic for recording machine data, production time, set-up time, downtime, fault time, quantity and adjustable recording period
- Fast data exchange between control and I/O component via EtherCat
- Uninterruptible power supply for panel PC
- Feed lock for adjacent machines or transport
- Powerful panel PC with integrated 15.6 inch display
Nodezvdw Nepfx Abyolf
with touch screen, integrated keypad, keyboard and mouse
- USB port
- Fast EtherCat interface (field bus)
- Ethernet network connection RJ45
- Operating system Windows with TwinCat 3 system for real-time control
