SPINNER TTS 65-DUPLEX

SPINNER TTS 65-DUPLEX

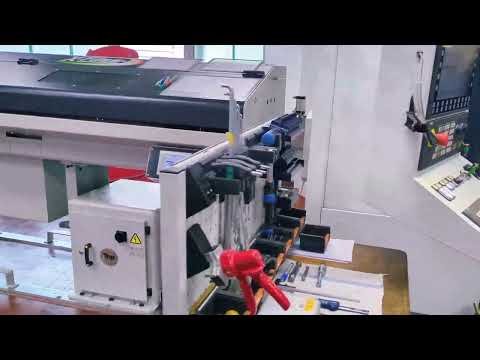

This 7-axis SPINNER TTS 65-DUPLEX horizontal turning machine was manufactured in 2020. It features a spindle bore of Ø65 mm, a chuck diameter of 210 mm, and a maximum spindle speed of 5000 rpm. The machine includes a 3-meter bar loader, enhancing its productivity. With rapid traverses of 30 m/min and an acceleration of 0.5 g, it ensures efficient operations. If you are looking to get high-quality turning capabilities, consider the SPINNER TTS 65-DUPLEX machine we have for tact us for more information.

Additional equipment


• Coolant Tank Volume: Approximately 200 liters

• Hydraulic Tank Volume: Approximately 120 liters

• Central Lubrication Unit Volume: Approximately 2 liters

• Operating Current (IB): 76 A

• Rated Current of Protection Device (IN): 80 A

Machine Benefits

Technical Machine Benefits


• Acceleration: 0. 5 g

• Spindle nose: a6 type

• Chuck diameter: 210 mm

• Maximum torque: 151 nm / 115 nm (s3 40% / s1)

• Coolant tank volume: approximately 200 liters

Extra Information

Travel Paths:
X1, X3: 180 mm
X2: 180 mm
Y1, Y3: ±45 mm
Z1, Z3: 704 mm
Z2: 620 mm
E2: 720 mm //
Accessories: -4x Tool holders, straight, left-right square mount, external coolant
-4x Machine Interface:BT45A Tool Holder:Ø 32 mm Coolant Supply:IK 80 bar Functional Length (LF): 85 mm Overhang Length (LPR): 110 mm Functional Width (WF): 59/21 mm -1x Milling Head: 90° / BMT 45 / Spinner No. 125548 / ER 25 Description: Angled milling head / BMT45 / ESX-25, dual-spindle (right and left) Spinner flat coupling ER25, max. speed: 6000 rpm, i=1:1 Enhanced version with center height of 85 mm -1x Parting Tool Holder Universal rotation direction External coolant supply

Dimensions
Machine Depth 2880 mm
