现货板材剪切机 10x3200

Otinus SMO-3210-N

Hydraulic Guillotine Shear QC12Y 10x3200 SMO-3210-N

Specifications
- Maximum thickness mild steel (PN-EN S235): up to 10.0 mm
- Maximum working length: 3200 mm
- Cutting angle: 1.5°
- Strokes/minute: 10 - 12
- Backgauge retract distance: 600 mm
- Motor power: 15.0 kW
- Length: 4000 mm
- Width: 1800 mm
- Height: 2100 mm
- Total mass: 8400.0 kg

Equipment
- Backgauge powered by an electric motor (on ball screws)
- Hydraulic sheet metal clamping over the entire working length
- Blade clearance adjustment
- Ball transfer units built in on the table
- Workspace illumination
- Front Suports
- Mobile foot switch

Rear ramp
The rear ramp has been fitted with ball transfer units so that cut-offs are never left over on the machine.

E21S Controller
(Mounted on a swivel arm on the left side of the machine)
- Backgauge control
- 40 programs can be stored - up to 25 different steps in each program
- Retract function
- One-touch parameter saving
- Parameters memory in case of power failure

Steel hydraulic lines
Hydraulic lines made of steel instead of rubber reduce the chances of future leaks.

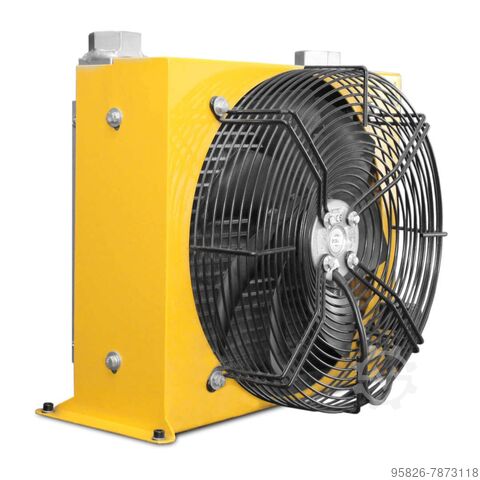

OCS - Oil Cooling System
Oil Cooling System - guarantees the stability of the machine's operating parameters even after long, continuous operation.

PCS - Preassure Control System
Pressure Control System ensures reliable operation of the blade for many years.

Assistance by a specialist
We make sure to stay in constant touch with our Clients. Therefore, we add a package of tech support hours of Otinus Professional Assistance to every machine purchased.

Technical consulting
We have specialists who will determine the right machine and accessories before the purchase - on the basis of technical drawings of the parts you plan to make.

See and test the machine
Join us for a special demonstration where a qualified Otinus technician will show you the full functionality of the machine.
In addition, you will be able to try out how the device will perform against your needs. You can provide technical drawings and sample material.

Included in the machine price
Jednodniowe szkolenie wraz z instalacją maszyny
- 1 day (up to 8 hours) - installation of the machine and learning to use the controller.
Telephone consultation with a specialist
- 7.30 am - 9.00 pm (Mon-Sat) – a time package of 8 tech support hours to be used within 12 months.
Free loan of transport rollers and two lifting jacks for easier positioning of the machine at the Client's site. The rollers and jack will be delivered upon prior (no less than 7 days before delivery of the machine) request.

Terms of cooperation
- 24 month warranty.
- Lead time: approx: 10 - 12 weeks. Not applicable if a machine is labeled as available immediately.
Gbjdpoiukw Tjfx Afmsg
- The machine is brand new.
- Warranty and post-warranty service provided by the seller.
- The Client is responsible for the machine during unloading and transport on their premises.
