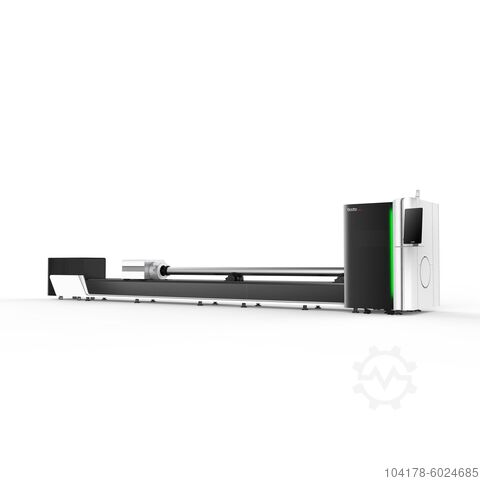

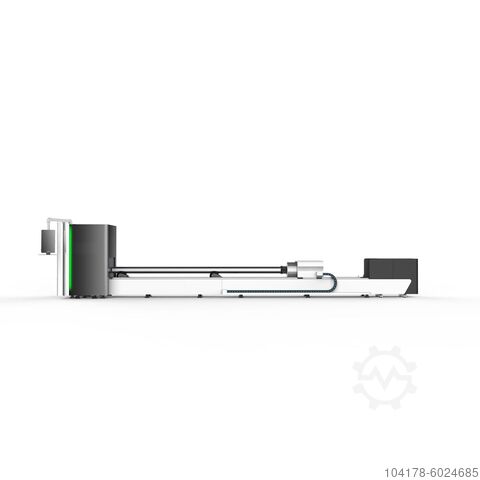

管材激光切割机

Bodor K

Model: K110 K230 K360
Working Area: from 8649×1398×1811mm to 10000×3500×2100mm
Laser Output Power: 3000w/2000w/1500w/1000w
X/Y-axis positioning accuracy: 0.05mm
X/Y-axis repositioning accuracy: 0.03mm
X/Y-axis Max. linkage speed: 60m/min

1. Integrated full protection cover
Integrated full protection cover design,
installing in place, greatly reducing installation time.

2. Bodor Genius T needle nose auto-focusing laser head
Bodor Genius T needle nose auto-focusing laser head, applicable for all kinds of tubes such as angle steel, channel steel, I-beam, etc.

3. Rectangular Tube Welded Bed
Simple structure and flexible layout.

4. Bodor Thinker 3.0 System
The dedicated control system of tube cutting machine integrated with the most advanced technology, can cut angle steel and channel steel directly without nesting and returning home.

5. Applicable to smaller clamping diameter
The rear jaws can clamp the pipe to go through the front chuck, which greatly shortens the physical distance between the cutting head and the rear chuck jaws. Tail length is reduced to 70mm and the material utilization rate is increased to 99%.

Blodpfx Aog D Ntqjb Esc
6. Ergonomics
Loading and operating on both sides; and humanized interaction interface, convenient and smooth operation, and favorable user experience.

7. Integrated design
Integrated design of electric control cabinet and main body, saving the space occupied, standardizing the line installation.
