板材自动锯切机-升降台供料系统
HOLZMA (Homag group) HPL 400/43/16 PROFI

Name: HOLZMA (Homag group) HPL 400/43/16 PROFI
Brand: HOLZMA (Homag group)
Availability: InStock

状况

二手

位置

Roreto

板材自动锯切机-升降台供料系统 HOLZMA (Homag group) HPL 400/43/16 PROFI

HOLZMA (Homag group) HPL 400/43/16 PROFI

基本数据

机器名称:: 板材自动锯切机-升降台供料系统

制造商:: HOLZMA (Homag group)

型号:: HPL 400/43/16 PROFI

状况:: 非常好（已使用）

价格和位置

位置:: Via Savigliano 29, 12062 Roreto Di Cherasco (CN), Italia

拨打

优惠详情

广告编号:: A22654722

参考编号:: 200006

更新:: 最近更新时间为 03.09.2026

描述

Panel Beam Saw - With rear lifting table

Numerical Control POWER CONTROL V2.1 (Power TOUCH)
Software CADmatic 5
Cross-chains for transporting panel packs in the lifting table
Lifting scissor table (mm) 4300 x 1600
Rear pushers (N.) 1 with clamps / grippers 12

Turning device (rotating unit) at 90°

Max. cutting width (mm) 4300 - Useful stroke of the pushing system (mm) 4300
Max blade projection (mm) 125

Scoring Unit (max saw diameter / power) mm 180 / Kw 2,2
Main Sawing Unit (max saw diameter / power) mm 450 / Kw 28
Adjustable speed of the saw carriage (m/min) 1 - 150
Front supporting tables with Air blowing system (N.) 4 (3 x 2160mm x 650mm + 1 x 2160mm x 800mm)
Total power (Kw)

OPTIONAL:
Kdsdpfszxn Ecsx Aa Teu

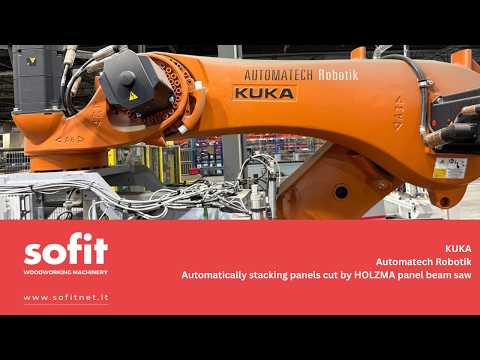

200062) Automatic unloading system for cut panels and stacking system
AUTOMATECH ROBOTECH with Robot KUKA Mod. KR 470-2 PA
