冷冻压缩空气干燥机 / 压缩空气干燥机

FST 12000m³/h DFLO 1200 W

A compressed air refrigeration dryer consisting of 2 DFLO 1200 W units.

The dryer has only been operated for a few hours on a test bench. Afterwards, it was repacked in its original packaging and stored in dry conditions.

Volume flow rate: 12,000 m³/hour
Min. / max. operating pressure: 2 - 16 bar
Test bench operating pressure during last application: 1.4 to 2.3 bar
Inlet diameter: 1x DN 200
Outlet diameter: 1x DN 200
The dryer features a second overpressure outlet DN 100 with Samson pressure regulator.
Min. / max. compressed air temperature: +2°C to +55°C
Min. / max. ambient temperature: +2°C to +45°C
Lsdpew Dppvefx Amusaa
Cooling water requirement: 14.3 m³/h
Cooling water connection: 2"
Refrigerant: R407C
Refrigerant charge: 24 kg
Installed electrical power: 29 kW
Power consumption: 18 kW

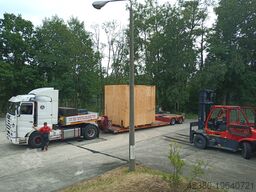

Wooden crate dimensions:
Length: 3700 mm
Width: 3000 mm
Height: 3650 mm
Weight: 5600 kg
