Fehlmann PICOMAX 56 TOP

High-precision drilling and milling machine
Fehlmann Picomax 56TOP, Heidenhain TNC 620, Like New, CE Compliant!!

Technical Data:

>> Year of manufacture: 2016 Machine No.: 12416433
>> Travels X/Y/Z: 500 / 400 / 400 mm
>> Distance table - spindle nose: 120–520 mm
>> Clamping surface (L x W): 908 x 480 mm
>> Spindle speed range: 50–12,000 rpm
>> Drive power: 9.5 kW
>> Space requirement (W x D x H): 1700 x 1900 x 2500 mm
>> Weight: approx. 3,000 kg

About the machine:

The top machine for both manual and CNC operation featuring FEHLMANN’s innovative operating concept: compact, fast, and economical.

The PICOMAX 56 TOP (Touch Or Program™) precision milling and drilling machine is equipped with an entirely new operating concept that combines 3-axis CNC and manual operation via drilling lever and handwheels. It is specifically designed to perform milling, drilling, and tapping on single parts quickly, safely, and efficiently, without time-consuming programming. After only a short familiarisation, the PICOMAX 56 TOP can be operated highly efficiently even without programming skills.

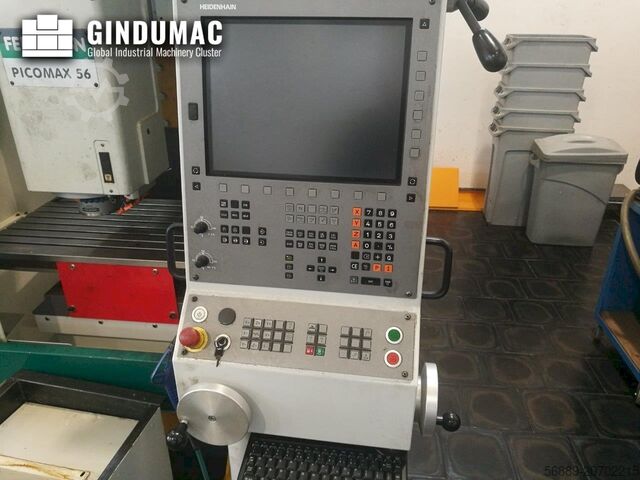

Even in its standard version, the FEHLMANN milling machine ‘Made in Switzerland’ offers various features of a modern, high-performance milling machine, such as: fully-digital Heidenhain TNC 620 CNC control, FEHLMANN’s proprietary liquid-cooled, high-torque motor spindle for universal milling up to 12,000 rpm, as well as Z/S-interpolated thread cutting, 3D milling, boring, and more.

Djdpfxowutrps Afxjcr

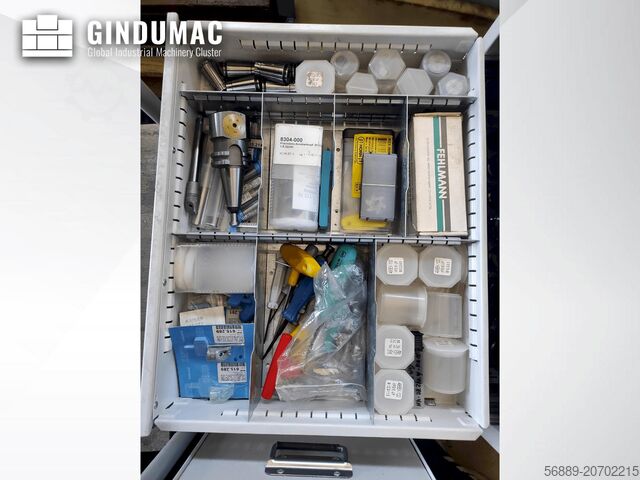

Tool holders including vice and accessories (see pictures) are included. Absolutely like-new condition. Mechanically and electrically tested. Take the opportunity to view and test this machine under power on site.
