循环车床

DMT Kern CD 402

Cycle Lathe DMT Kern CD 402

Condition: Not tested

Delivery terms: Free loaded truck

Location: 63773 Goldbach

Availability: By arrangement

Payment terms: Advance payment by bank transfer

Internal no.: S1

Inspection under power: Can be inspected under power until 24.03.

Technical Data:

Control: Heidenhain MANUELplus 620
Operating hours approx.: 2265

WORKING RANGE:
Swing diameter over bed: 400 mm
Swing diameter over cross slide: 230 mm
Cross slide travel (X): 250 mm

CENTRE DISTANCE / TURNING LENGTH:
Centre distance: 1000 mm

MAIN SPINDLE DRIVE:
Power (Digital AC motor - 40 / 60 / 100%): 16 / 15 / 12 kW
Gear steps: 2

SPINDLE HEAD:
Spindle nose: DIN 55026 – Size 6
Spindle bore / clearance: Ø82 mm
Spindle diameter in front bearing: 110 mm
Speed range: 1 – 3000 rpm

CROSS SLIDE / FEEDS:
Feed transverse (X): 0.001 – 1000 mm/rev
Feed longitudinal (Z): 0.001 – 2000 mm/rev
Rapid traverse transverse (X): 5 m/min
Rapid traverse longitudinal (Z): 10 m/min
Feed force transverse (X): 5000 N
Feed force longitudinal (Z): 7000 N

TAILSTOCK:
Quill diameter: Ø60 mm
Quill travel: 140 mm
Quill taper: MT 4

ELECTRICS:
Connection: 400 V / 50 Hz

EQUIPMENT:

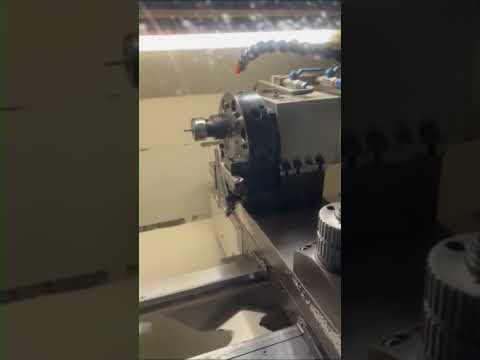

8-position tool turret with three tool holders and one tool mount
Tailstock
Three-jaw chuck
Mist filtration unit

SCOPE OF DELIVERY:
Available documentation
Iodpoyvldtefx Af Retd
A Garant drawer cabinet including a large number of tool holders, tool mounts, jaws, and drills as per the pictures

DIMENSIONS & WEIGHT:
Setup dimensions L x W x H approx.: 2650 x 1600 x 1900 mm
Weight approx.: 2500 kg

If you have any questions or would like to arrange a viewing, please contact us!

Additional Notes:
► On request, we can offer transport to the destination
► The offer price is net plus VAT
► The goods are sold under exclusion of any warranty
► Technical data without guarantee
► Subject to prior sale
❗ Sale of the goods is exclusively to businesses ❗
