OTT ALPHA 110宽带砂光机

OTT ALPHA 110

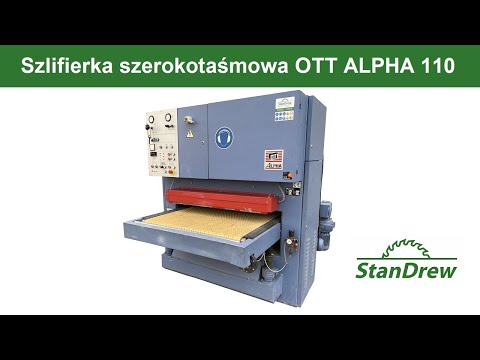

OTT ALPHA 110 wide-belt sander

- machine in stock
- after the technical review
- very good condition
- German production
- year of production 1996
- segment shoe - a perfect solution for varnish / veneer


TECHNICAL SPECIFICATIONS:

- grinding width 1100 mm
- grinding height 1-150 mm
- combi unit with task-controlled membrane sanding shoe
- engine power 11 kW
- blowing on the belt
- pneumatic oscillation
- two types of belt speed 4.5 and 18 m / s
- aggregate with felt roller
- engine power 0.75 kW
- shaft oscillation
- aggregate with a cleaning brush
- engine power 0.75 kW
- smoothly regulated feed
- feed speed range 4-18 m / min
- 1.5 kW feed motor power
- electric height adjustment
- vacum table
- 3kW fan motor power
- diameter of nozzles 4 x 120 mm and 1 x 150 mm


Transport dimensions:


Iedpfx Aogi Drysf Dotr
- length 200 cm
- width 245 cm
- height 210 cm

- weight 2500 kg


1. The Alpha Combi aggregate is a grinding unit with a contact shaft with a diameter of 150 mm and a hardness of 90 shor. It is integrated with a sectional pneumatic shoe with a section width of 27 mm

2. EMS 27 optical system - detects minimal unevenness and adjusts the pressure force of a particular section of the shoe at a given point of the ground element.

3. It is possible to control the individual sections of the shoes adjacent to each other in the range -2 to +4 -
