IML DA 900，盒式裱纸机

IML Machinery DA-900

We offer this ready-to-use IML Machinery DA-900 IML DA 900 box laminating machine.

Manufacturer: IML Machinery
Model: DA-900
Condition: ready for use
Category ID: 174
Type ID: 82
Machine type: IML DA 900, box laminating machine

DESCRIPTION

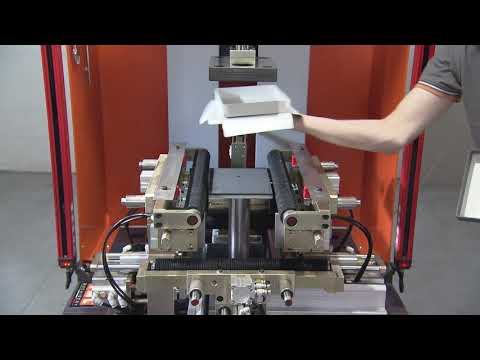

Thanks to its ease of operation and quick changeover capability, this electro-pneumatic machine is suitable for small and medium production volumes of high-quality boxes.

The operator places the box onto the pre-glued facing paper and then manually feeds it into the machine. Once the box is positioned, the processing sequence is started via the machine's foot pedal.

The machine then operates independently, lining the box, including the inner flap. At the end of the cycle, the box is automatically ejected.

TECHNICAL DATA

Production: approx. 7 pieces/minute

Voltage: 220 volts, single-phase

Total power: 2.5 kW

Gbjdpfxezfv Tzs Aa Isr
Compressed air connection: Rilsan hose Ø 12 mm

Air consumption: 20 NL/minute at 6 bar

DA 900

Box dimensions (L × W × H): min. 60 × 60 × 10 mm; max. 430 × 350 × 120 mm

Machine dimensions (W × D × H): 1200 × 1400 × 2300 mm

Weight: 1000 kg

If you have any questions or require further information, please do not hesitate to send us a message or call us.
